- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Product Line
- MeanWell
- Product Series
- SDR-480
- Product Type
- Power Supply

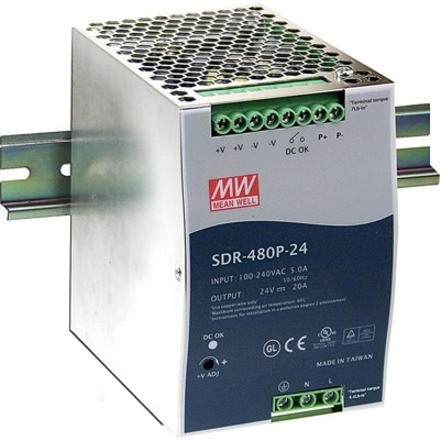

Model SDR-480P-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s). Model SDR-480P-24 also supports parallel function.
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 370 V DC
- Output Voltage
- 24 V DC
- Output Current
- 20 A
- Output Power
- 480 W
- Physical Characteristics
- Form Factor
- DIN Mountable
- Miscellaneous
- Country of Origin
- Taiwan
