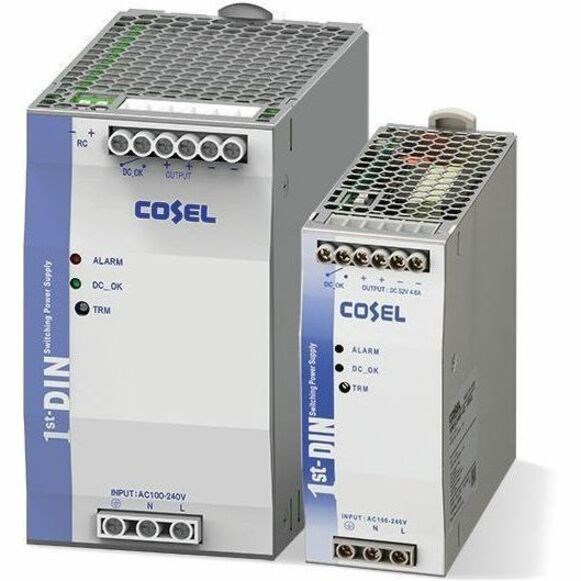

IE048 Series Industrial AC/DC Power Supply, 48VDC Output
The IE048 industrial power supplies are functional accessories for Allied Telesis products. They are ideal for Smart Cities, Industrial Ethernet, Transportation or any application requiring systems that function in harsh environments with extended operating temperatures.
Overview
The IE048 Series power supplies deliver reliable 48VDC output voltage. They are fully tested and validated to operate with Allied Telesis Industrial products.
Housed in a compact metal case with DIN rail clip, the IE048 features mechanical robustness, electromagnetic compatibility and enhanced thermal characteristics, making it ideal for exposed areas and harsh environments.
Highly efficient and stable output power provides the capability to support 150% of peak load. The nominal output voltage of 48VDC can be adjusted to match application requirements.
The AC/DC rectifier operates over the full range of AC input voltage to fit worldwide power grids. The included active Power Factor Correction circuit (PFC) reduces energy costs by eliminating reactive power and harmonics from power lines.
As well as providing efficiency, the PFC complies with international regulations. It establishes limits on the harmonic currents that can appear on an AC main line.
- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.com
- Brand Name
- Allied Telesis
- Product Series
- IE048
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Efficiency
- 94%
- Power Factor Correction (PFC)
- Active
- Protection Type
- Over Current
- Over Voltage
- Over Temperature
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 90 V AC - 264 V AC
- 88 V DC - 350 V DC
- Output Voltage
- 48 V DC
- Output Current
- 10 A
- 15 A
- Output Power
- 480 W
- Input Frequency
- 50/60Hz
- Environmental Conditions
- Minimum Operating Temperature
- -13°F (-25°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Height
- 4.9"
- Width
- 2.8"
- Depth
- 4.6"
- Weight (Approximate)
- 2.65 lb
- Miscellaneous
- Certifications & Standards
- CE
- cULus
- RCM
- DEMKO
- CAN/CSA C22.2 No. 62368-1
- EN/IEC/UL 62368-1
- UL 508
- EN 55035
- IEC 61000-3-2
- IEC 61000-4-2
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-8
- IEC 61000-4-11
- CISPR 32
- EN 55011
- EN 55032
- FCC 47 CFR Part 15
- VCCI
- ANSI/ISA12.12.01 class I, division 2, groups A, B, C and D
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
