- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module

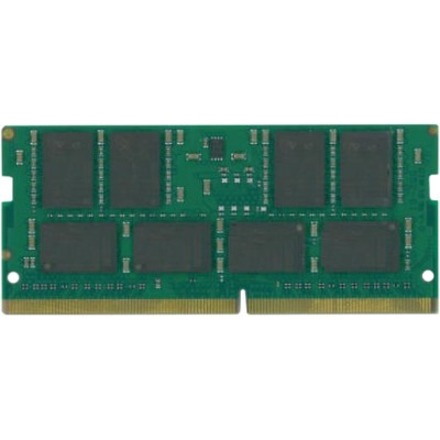

DTM68607C is a non-ECC Unbuffered smalloutline 2Gx64 memory module, which conforms to JEDEC's DDR4-2400, PC4- 2400 standard. The assembly is Dual-Rank containing: sixteen Micron 1GbMx8 DDR4- 2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 16 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 16GB
- Memory Speed
- 2400 MHz
- Memory Standard
- DDR4-2400/PC4-19200
- Error Checking
- Non-ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL18
- Physical Characteristics
- Number of Pins
- 260-pin
- Form Factor
- SODIMM
- Thickness
- 145.7 mil
- Width
- 1.2"
- Length
- 2.7"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
