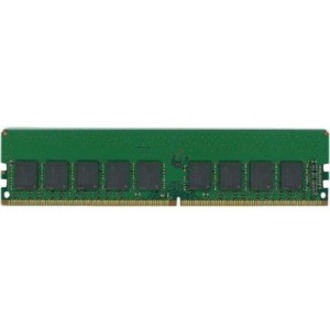

DRV2666E/16GB is an Unbuffered 2Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Dual-Rank. Each rank is comprised of nine 1Gx8 DDR4-2666 SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module
- Technical Information
- Memory Size
- 16 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 16GB
- Error Checking
- ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL19
- Device Supported
- Server
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Compatibility
- Lenovo ThinkServer:
- ST250
- ST50
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
