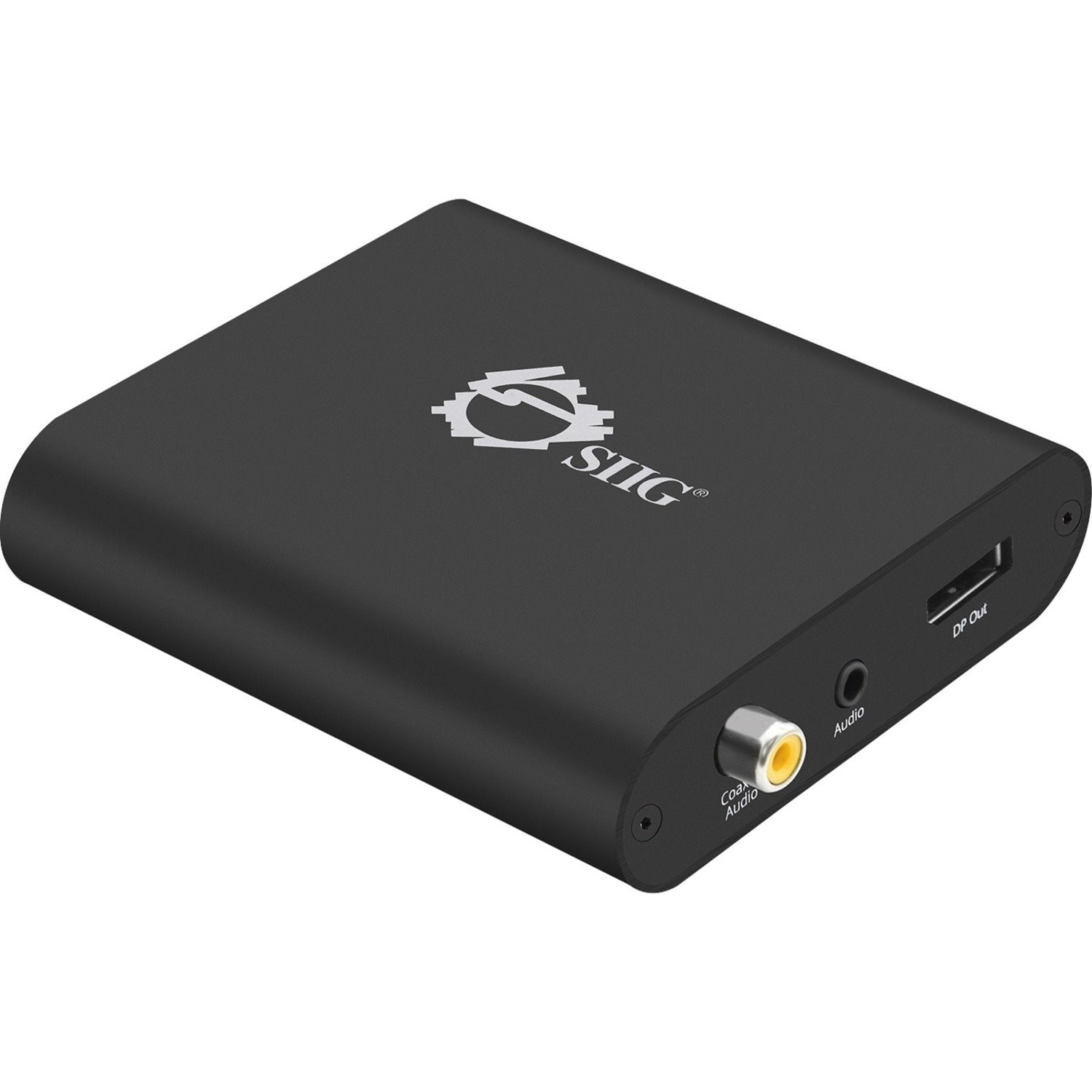

Transforms an HDMI 2.0 port into a DisplayPort 1.2 port connect your 4K UHD TV
- High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion
- Supports UHD 3840x2160@60Hz (4:4:4 8bit), 3840x2160@30Hz, 1080p@60Hz resolution via EDID management DIP switches, allowing for expanded compatibility with different monitors. Note: The DisplayPort output does not contain audio stream
- Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
- Allows mirror, extended or primary display modes working in conjunction with your system's graphics adapter, allowing flexible support for presentation, gaming, and multimedia applications
- Separate Coaxial audio jack and 3.5mm Stereo audio jack, extracts 7.1Ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device. Note: only one audio output can be connected at a time
- Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
- Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
- Plug & Play Installation - No driver or software installation required
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Signal Converter
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Functions
- Signal Conversion
- Maximum Resolution
- 3840 x 2160
- Interfaces/Ports
- USB
- Yes
- DisplayPort
- Yes
- HDMI
- Yes
- Audio Line Out
- Yes
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 3.4"
- Width
- 0.9"
- Depth
- 3.7"
- Weight (Approximate)
- 0.41 lb
- Miscellaneous
- Package Contents
- HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz
- Power Adapter
- Mounting Kit
- User Reference Guide
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
