Compatible with Hidden-Connector Motherboards

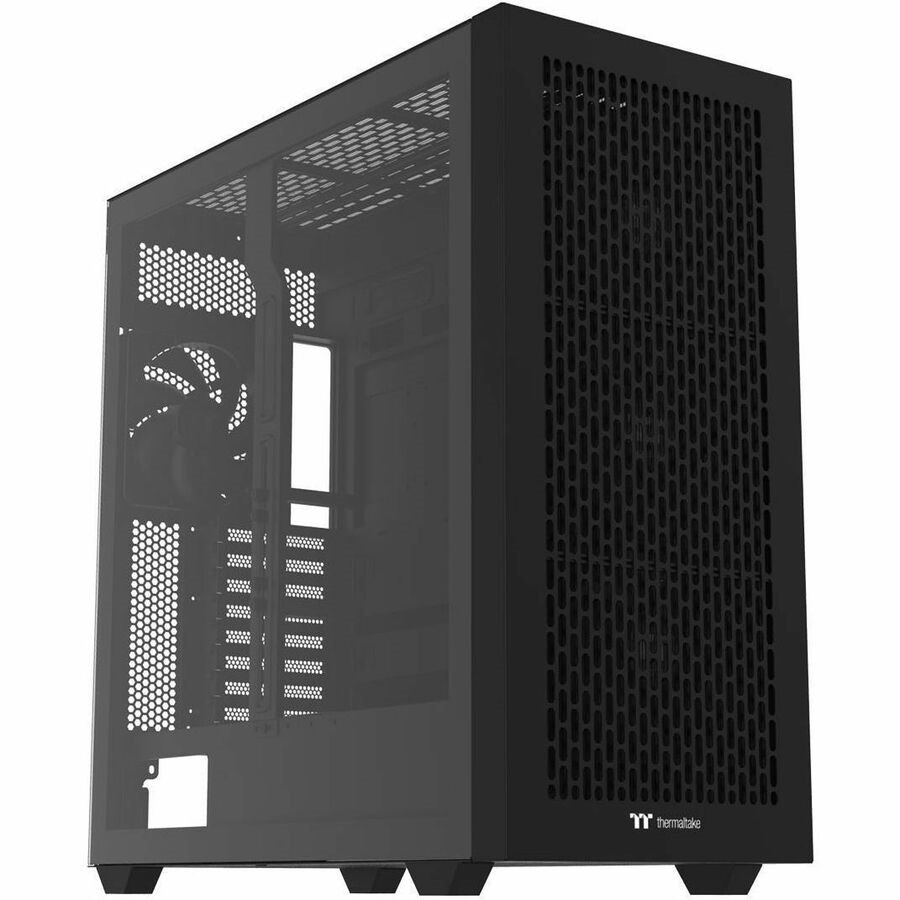

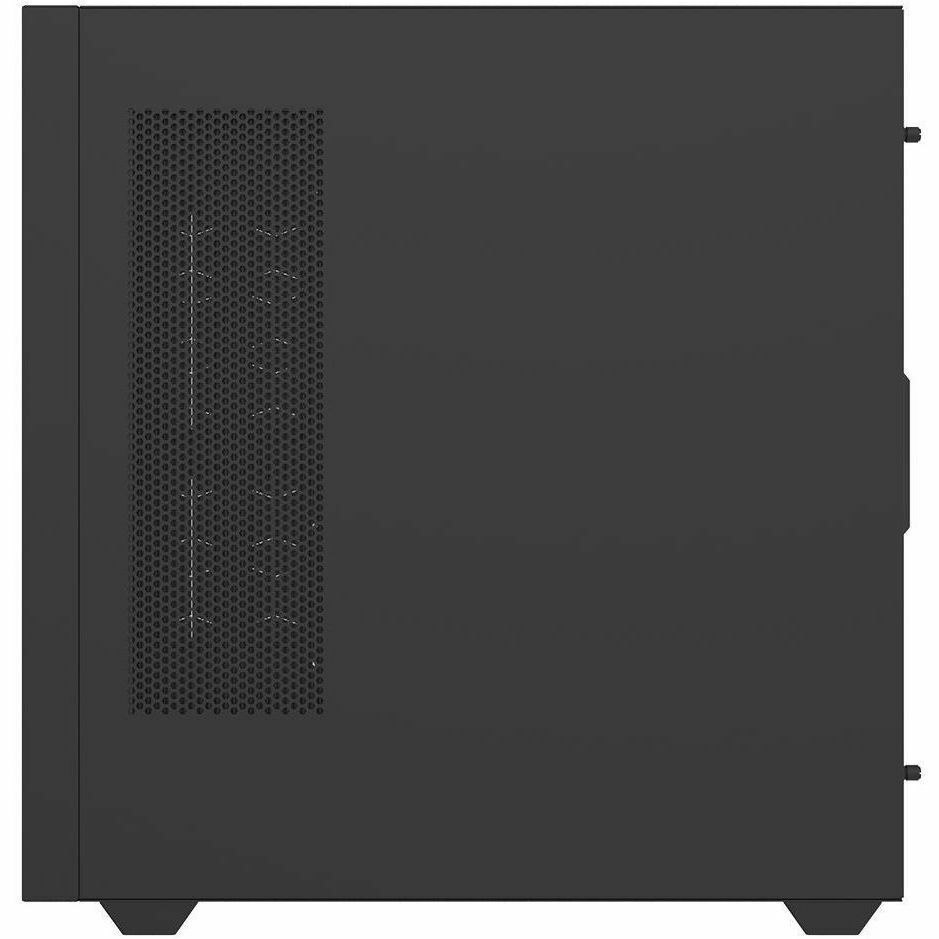

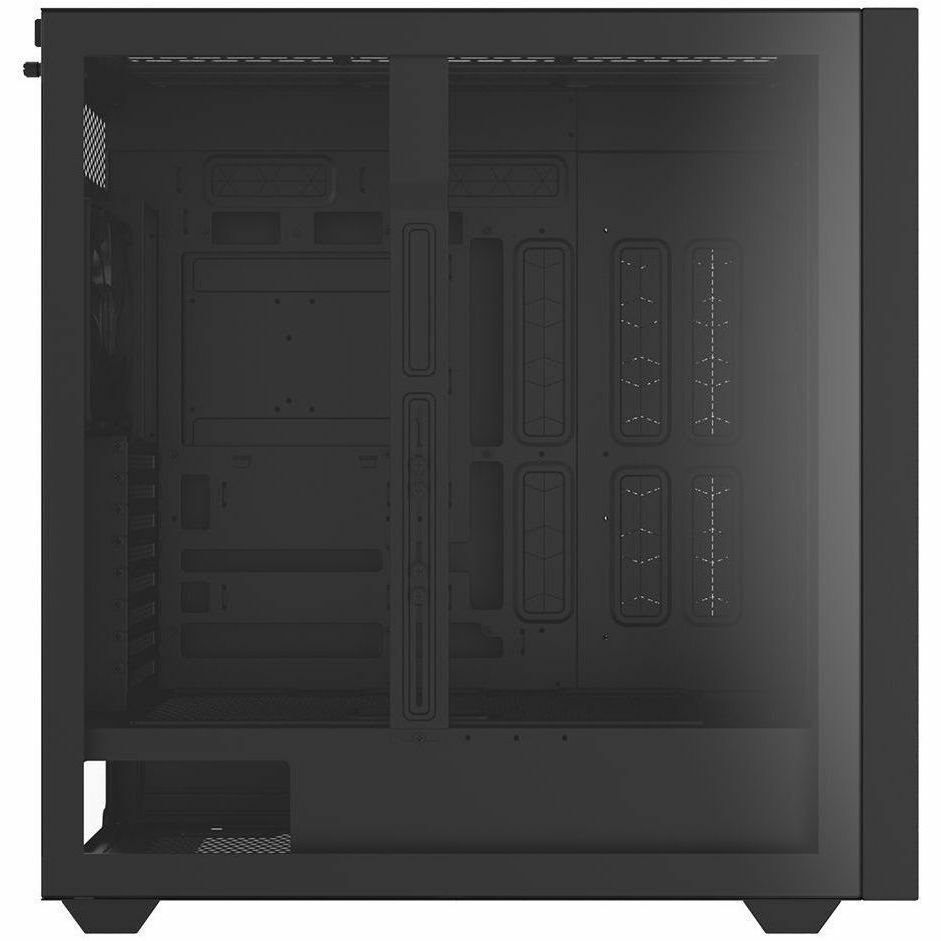

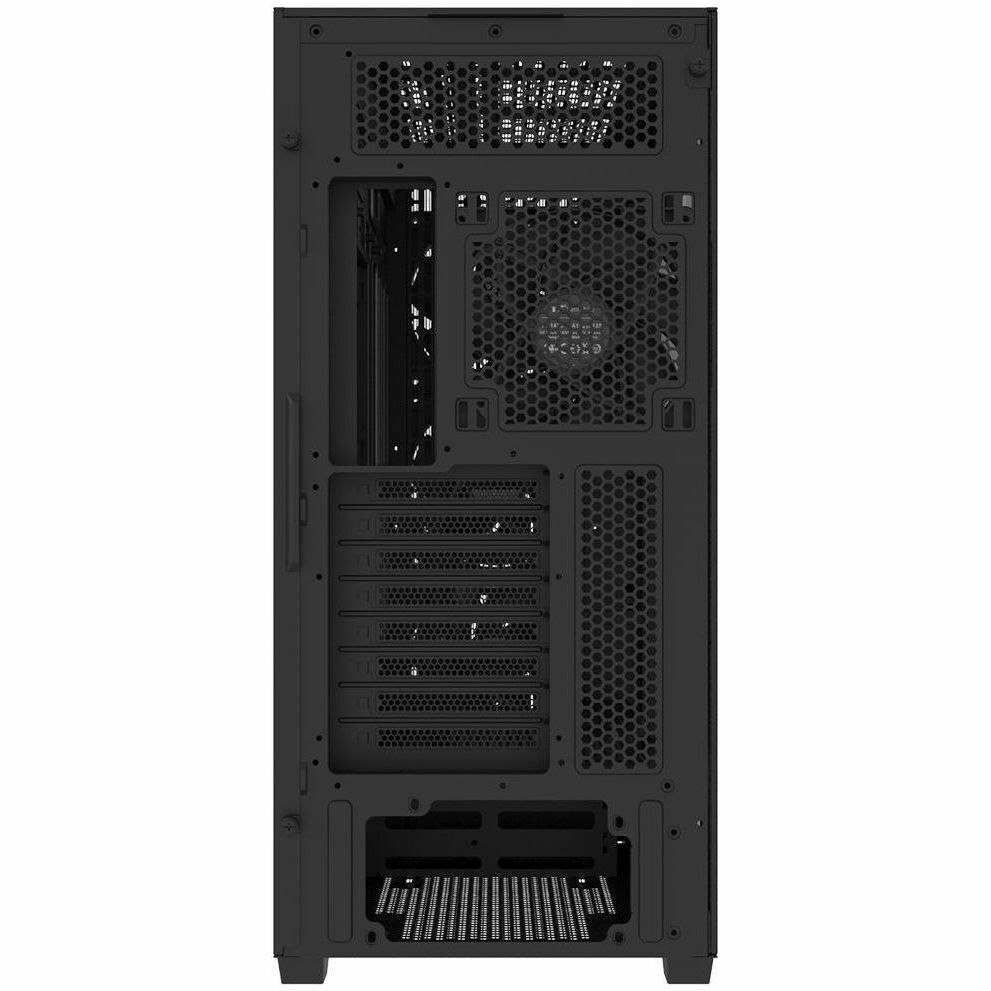

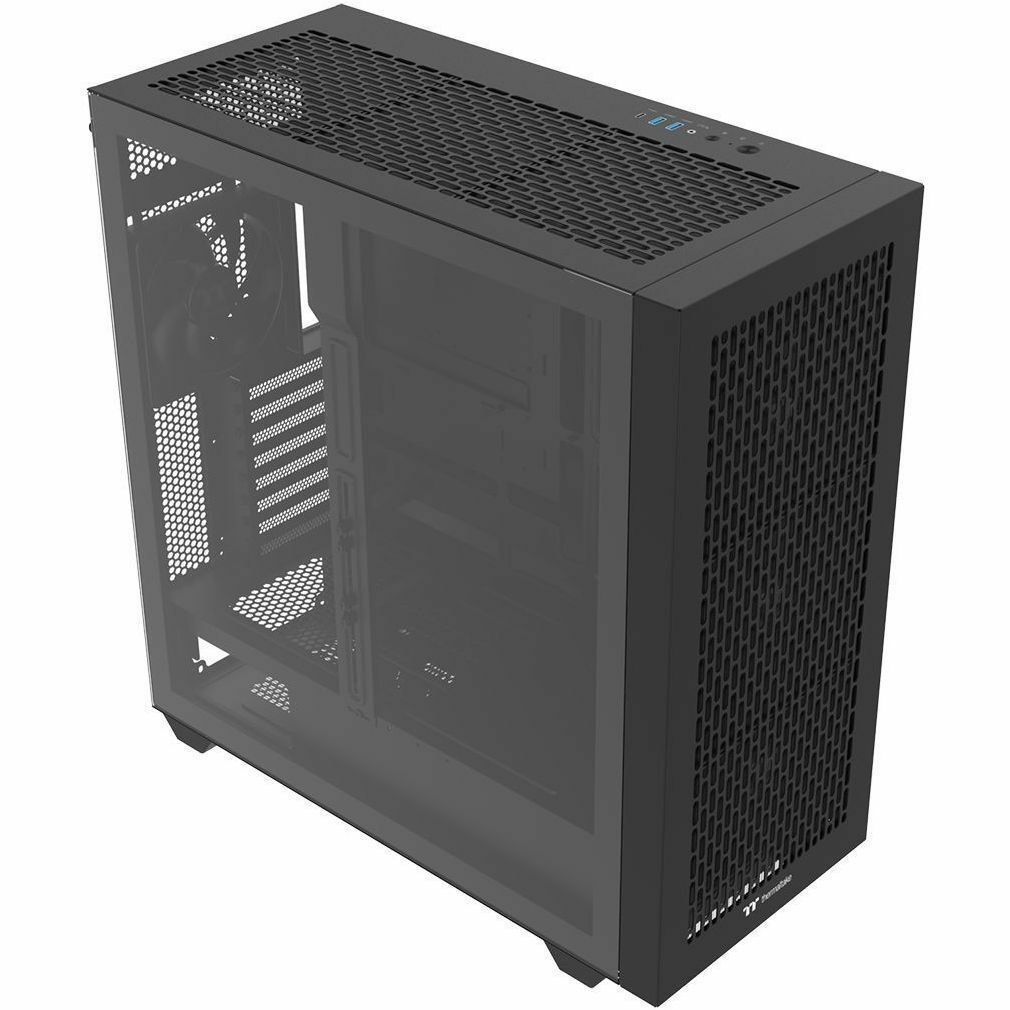

The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Note: The top fan + radiator thickness limit is 82mm
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.
Drive Plate
- 1 x 3.5" HDD or
- 2 x 2.5" SSD
Drive Cages
- 4 x 3.5" HDD or
- 4 x 2.5" SSD
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Dimensions
550 248 548mm
CPU Cooler
Max height 185mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB
PSU
Max length 200mm
GPU
Length limitation 460mm
Fan Capacity
- 120mm
- 140mm
Radiator Capacity
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- 420mm
Perfect Dust Protection
The AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
- General Information
- Manufacturer
- Thermaltake Technology Co., Ltd
- Manufacturer Website Address
- http://www.thermaltakeusa.com
- Brand Name
- Thermaltake
- Product Series
- AX
- Product Type
- Gaming Computer Case
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Motherboard Supported
- Mini ITX
- Micro ATX
- ATX
- EATX
- SSI CEB
- SSI EEB
- Number of Fans Supported
- 14
- Fan Supported Details
Front:
4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Top:
3 x 120mm , 2x 120mm , 1x 120mm
3 x 140mm , 2x 140mm , 1x 140mm
Rear:
1 x 120mm , 1 x 140mm
Right:
3 x 120mm , 2x 120mm , 1x 120mm
2 x 140mm , 1x 140mm
Power Cover:
3 x 120mm , 2x 120mm , 1x 120mm
- Number of Fans Installed
- 4
- Fan Size Supported
- 4.72"
- 5.51"
- Installed Fan Size
- 5.51"
- Installed Fan Size Details
- 4 x 140mm
- Features
- Built-in GPU Holder
- Cable Management
- Dust Filter
- Reset Button
- LED Button
- Window Panel
- Yes
- Window Panel Location
- Left Side
- Bays
- Number of Internal 3.5" Bays
- 5
- Number of Internal 2.5" Bays
- 6
- Number of Total Expansion Bays
- 11
- I/O Expansions
- Total Number of Expansion Slots
- 8
- Interfaces/Ports
- Total Number of USB Ports
- 3
- USB Port Details
- 1 x USB 3.2 (Gen 2) Type C
- 2 x USB 3.0 Type-A
- Total Number of Audio In Ports
- 1
- Total Number of Audio Out Ports
- 1
- Power Description
- Power Supply Installed
- No
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- Tempered Glass
- SPCC
- Cooler Type
- Fan/Liquid Cooler
- Form Factor
- Full-tower
- Maximum CPU Cooler Height
- 7.28"
- Maximum PSU Length
- 7.87"
- Maximum GPU Length
- 18.11"
- Height
- 21.7"
- Width
- 9.8"
- Depth
- 21.6"
