- General Information
- Manufacturer
- Thermaltake Technology Co., Ltd
- Manufacturer Website Address
- http://www.thermaltakeusa.com
- Brand Name
- Thermaltake
- Product Series
- AX
- Product Type
- Gaming Computer Case
Optimize Your Workstation

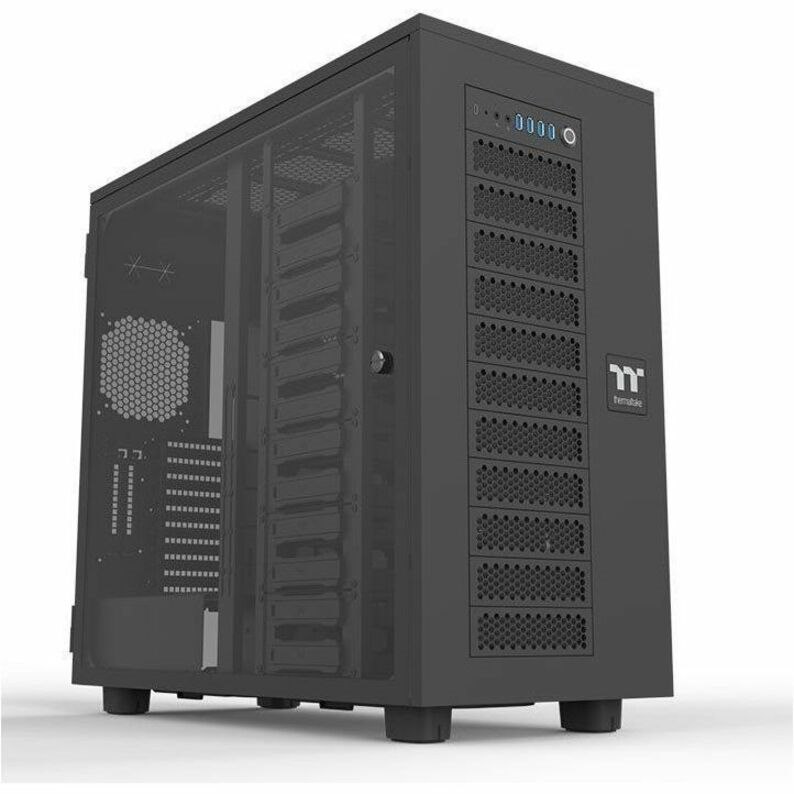

The AX700 TG Super Tower Chassis is a high-performance workstation super tower designed for content creators, small enterprises, and gamers, offering exceptional performance, storage, and cooling. It supports an XL-ATX motherboard, up to five 2-slot graphics cards, and eighteen 3.5" hard drives, making it ideal for demanding tasks like video editing and AI computing. With advanced thermal management, including space for up to eighteen 120mm fans and large radiators, the AX700 TG Super Tower Chassis ensures optimal airflow and hardware longevity.
Versatile Expandability
The AX700 TG Super Tower Chassis and AX100 pedestal offer multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level.
Premium Cooling Solutions
Supports up to eighteen 120mm/140mm fans and a 560mm DIY or 420mm AIO radiator on top for optimal thermal performance.
GPU Holder
The AX700 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

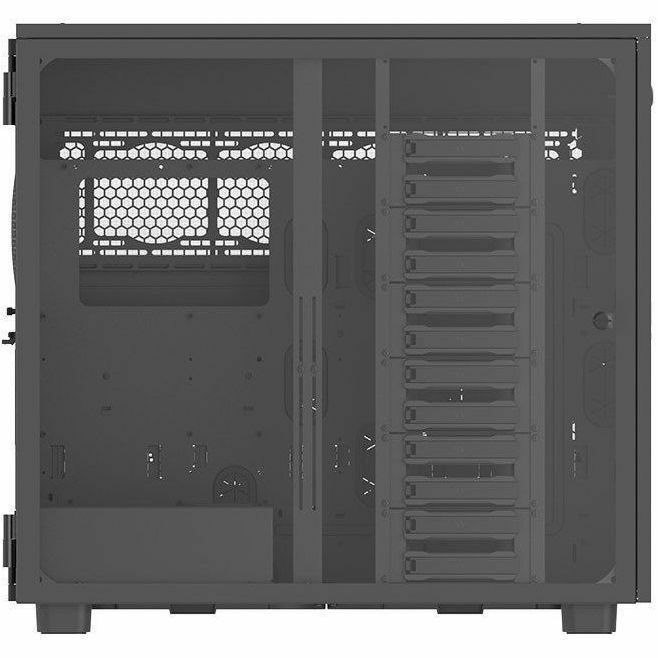

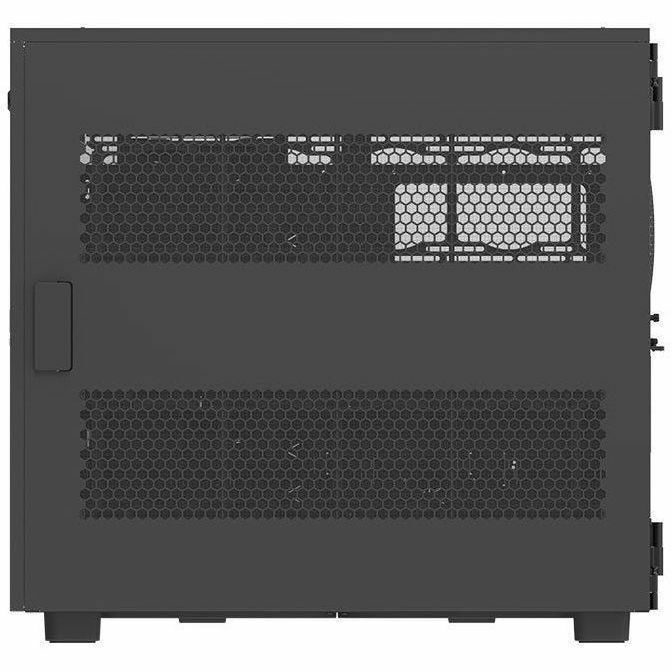

One Tempered Glass and One Perforated Side Panel
The tempered glass left side panel provides the better visibility and the perforated right side panel ensures better airflow, and the hinged design gives the easy access.
Perfect Dust Protection
The AX700 TG Super Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
Front-located I/O ports consist of following functions:
- Power Button with Integrated Power LED
- HDD LED
- USB 3.0 Type-A x 4
- USB 3.2 Gen 2 Type-C x 1
- HD Audio
Advanced Hardware Solutions
The AX700 TG Super Tower Chassis supports a 190mm CPU cooler, 630mm GPU (without HDD rack), and a 220mm power supply. It fits up to eighteen 120mm/140mm fans, a 560mm DIY or 420mm AIO radiator on top, and up to eighteen 3.5"/2.5" hard drives in the HDD cages and HDD trays. It can also be expanded by stacking with the AX100 for enhanced hardware solutions.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Motherboard Supported
- XL-ATX
- SSI CEB
- SSI EEB
- Mini ITX
- Micro ATX
- EATX
- ATX
- Number of Fans Supported
- 18
- Fan Supported Details
- Front: 3 x 120mm , 3 x 140mm
- Top: 4 x 120mm , 4 x 140mm
- Rear: 1 x 120mm , 1 x 140mm
- Bottom: 2 x 120mm , 2 x 140mm
- Right Side: 8 x 120mm , 8 x 140mm
- Fan Size Supported
- 5.51"
- Features
- Thermally Optimized
- Built-in GPU Holder
- Dust Filter
- LED Button
- On/Off Button
- Window Panel
- Yes
- Window Panel Location
- Side Panel
- Bays
- Number of Internal 5.25" Bays
- 2
- Number of Internal 2.5"/3.5" Bays
- 18
- Number of Total Expansion Bays
- 20
- I/O Expansions
- Total Number of Expansion Slots
- 10
- Interfaces/Ports
- Total Number of USB Ports
- 5
- USB Port Details
- 4 x USB 3.0
- 1 x USB 3.2 (Gen 2) Type C
- Front USB
- Yes
- Total Number of Audio In Ports
- 1
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- SPCC
- Tempered Glass
- Cooler Type
- Fan/Liquid Cooler
- Form Factor
- Super Tower
- Maximum CPU Cooler Height
- 7.48"
- Maximum PSU Length
- 8.66"
- Maximum GPU Length
- 24.80"
- Height
- 25.4"
- Width
- 12.8"
- Depth
- 27"
